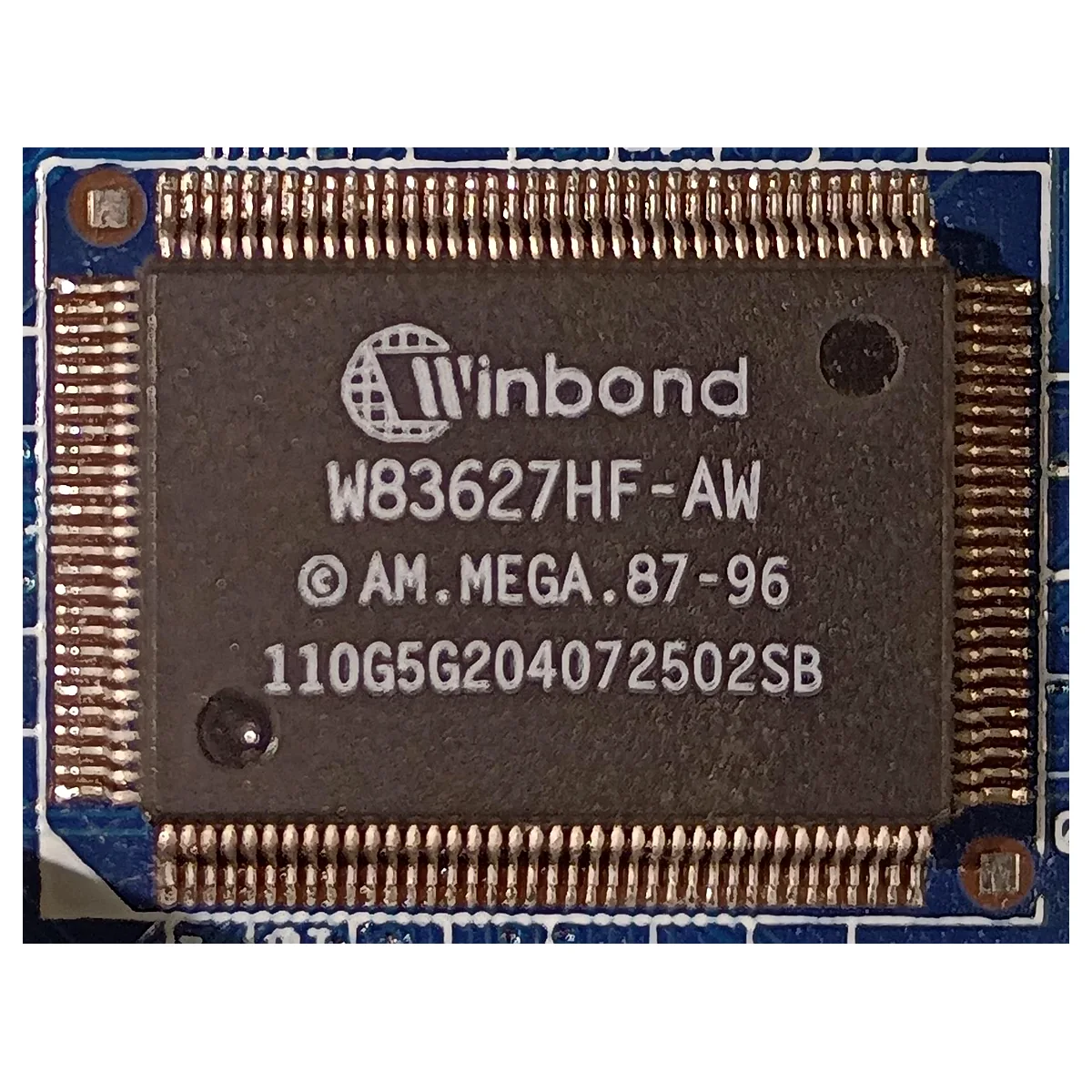

WINBOND W83627HF-AW 8362727HFAW Super I/O Controller IC

Product Description

The WINBOND W83627HF-AW IC is a Super I/O and LPC interface controller designed for motherboard applications. It provides multiple low-level system I/O and monitoring functions and is commonly used on compatible computer motherboard designs.

The W83627HF-AW integrates functions including keyboard controller interfaces, programmable GPIO, hardware monitoring, fan-speed monitoring and fan control, voltage monitoring, temperature monitoring, and system-management functions.

The device is specified in a 128-pin PQFP package. The W83627HF-AW ordering variant is associated with AMIKEY-2 KBC firmware, according to the manufacturer’s datasheet documentation.

Compatible Part Numbers

• W83627HF-AW
• 8362727HFAW
• Winbond W83627HF-AW
• W83627HF series

Product Details

• Product Type: Super I/O Controller IC
• Manufacturer: Winbond
• Part Number: W83627HF-AW
• Alternate Marking: 8362727HFAW
• Interface: LPC (Low Pin Count)
• Package: 128-Pin PQFP
• Functions: Super I/O, keyboard controller, GPIO, hardware monitoring
• Fan Functions: Fan-speed monitoring and fan control
• Monitoring: Voltage and temperature monitoring
• Application: Computer Motherboard Repair
• Condition: New Replacement IC

Warranty Details

Warranty: No Warranty
Warranty Service Type: Not Applicable
Warranty Type: No Warranty

Important Note:-

• Please verify the exact IC marking, package type, pin count, and motherboard requirement before ordering.
• W83627HF-AW is a Super I/O/LPC controller IC, not a dedicated CPU power IC or battery-charging IC.
• The IC uses a 128-pin PQFP package.
• Do not substitute W83627HF-AW with another W83627HF/F/HG/G variant without checking the motherboard schematic and required functions.
• IC replacement requires appropriate soldering and rework equipment.
• Professional motherboard repair by a qualified technician is strongly recommended.
• Firmware/KBC configuration requirements should be checked for the specific motherboard after replacement.
• Product images are for reference only. Actual chip markings, lot codes, and manufacturing markings may vary.
• This is an IC/component only. Motherboard, socket, accessories, and other components are not included.
• IC products are supplied without warranty.
• If the product is found to be out of stock after ordering, the payment will be refunded.

FAQs

1. What is the WINBOND W83627HF-AW IC?

The W83627HF-AW is a Winbond Super I/O/LPC controller used for various motherboard I/O and system-monitoring functions.

2. What is the package of W83627HF-AW?

The W83627HF-AW is specified in a 128-pin PQFP package.

3. What functions does W83627HF-AW support?

It supports functions including keyboard-controller interfaces, programmable GPIO, fan-speed monitoring and control, voltage monitoring, temperature monitoring, and system-management functions.

4. Is W83627HF-AW a laptop charging IC?

No. It is a Super I/O/LPC controller, not a dedicated laptop battery-charging controller.

5. Can this IC be replaced without motherboard repair equipment?

No. Replacing a 128-pin PQFP motherboard IC requires suitable soldering/rework equipment and technical experience. Professional installation is recommended.
