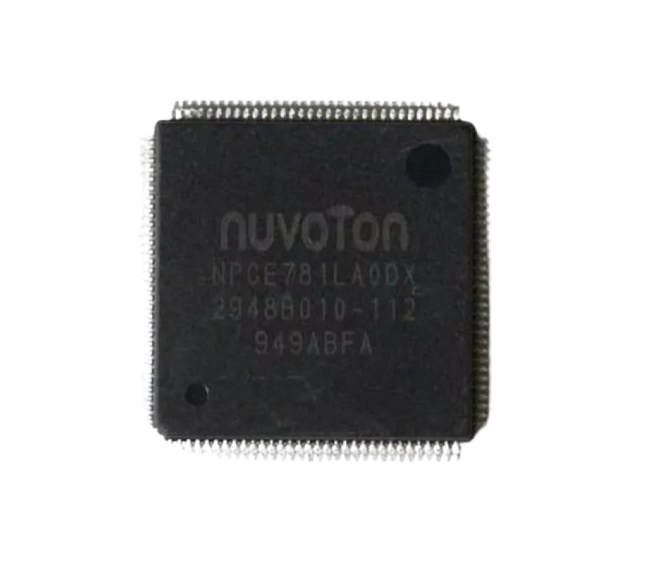

New Laptop Motherboard IC Nuvoton NPCE781LAODX NPCE781LA0DX QFP Laptop IC Chip

Product Description

The New Laptop Motherboard IC Nuvoton NPCE781LAODX / NPCE781LA0DX is an Embedded Controller (EC) / I/O Controller IC designed for notebook and portable computer motherboard applications. Nuvoton’s NPCE78xx family provides functions including keyboard control, power management and I/O expansion for notebook systems. The NPCE781LA0DX is specified in a 128-pin LQFP package.

Warranty Details

Warranty: No Warranty

Important Note:-

• Please compare your original IC marking with NPCE781LAODX / NPCE781LA0DX before ordering.

• The NPCE781LA0DX is specified as a 128-pin LQFP/QFP controller.

• This is a laptop Embedded Controller / I/O Controller IC, not a complete motherboard.

• The NPCE78xx family is designed for notebook keyboard control, power management and I/O functions.

• Common search references include NPCE781LAODX, NPCE781LA0DX and NPCE781.

• Verify the exact part number, package and pin configuration before replacement.

• Do not replace the IC solely because it looks similar to another Nuvoton controller.

• Check the pin-1 orientation carefully before installation.

• Professional fine-pitch SMD rework equipment and proper soldering skills are recommended.

• Depending on the specific motherboard, the EC may require the correct firmware/programming procedure after replacement.

• Incorrect installation or programming can prevent the laptop motherboard from operating correctly.

• The product includes the IC chip only; motherboard, programmer and other components are not included.

• Payment will be refunded if the product is out of stock.

• Immediate replacement will be provided if there are any functionality problems.

• Warranty will be void in case of physical damage, incorrect installation or soldering damage.

• The product image is for reference and the actual IC marking may vary slightly.

FAQs

1. What is Nuvoton NPCE781LA0DX?
NPCE781LA0DX is a Nuvoton embedded controller IC used for notebook motherboard functions such as keyboard control, power management and I/O control.

2. Is NPCE781LA0DX used in laptop motherboards?
Yes. The NPCE78xx family is designed for notebook and portable computer applications.

3. What package does NPCE781LA0DX use?
The NPCE781LA0DX is specified as a 128-pin LQFP/QFP package.

4. What are the common references for this IC?
Common references include NPCE781LAODX, NPCE781LA0DX and NPCE781.

5. Can I replace NPCE781LA0DX with another Nuvoton EC?
Do not assume compatibility. Always match the complete part number, package, pin configuration and motherboard firmware requirements before replacement.
