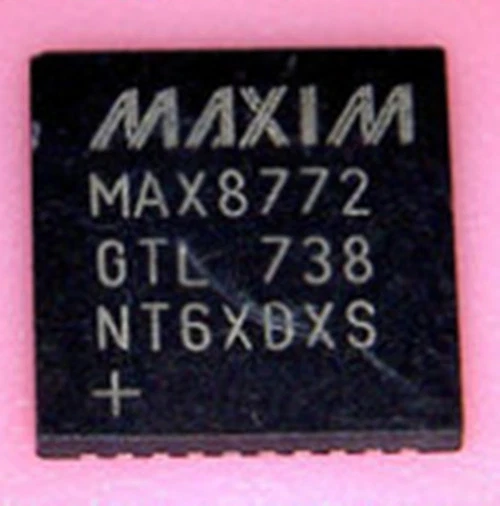

New Laptop Motherboard IC MAX8772GTL MAX8772 Voltage Mode PWM Controller 40-Pin TQFN

Product Description

The New Laptop Motherboard IC MAX8772GTL / MAX8772 is a 2/1-phase interleaved Quick-PWM step-down VID power-supply controller from Maxim Integrated, now part of Analog Devices. It is designed for notebook CPU power-supply applications and is used in compatible laptop motherboard power circuits.

The MAX8772GTL+ is supplied in a 40-pin Thin QFN package measuring 6mm × 6mm. The MAX8772 provides interleaved operation for improved input and output ripple performance and is designed to control synchronous MOSFET-based CPU power circuits.

Warranty Details

Warranty: No Warranty

Important Note:-

• Please compare your original IC marking with MAX8772GTL / MAX8772 before placing the order.

• The MAX8772GTL uses a 40-pin Thin QFN 6mm × 6mm package.

• This is a laptop motherboard CPU power controller IC, not a complete motherboard.

• The MAX8772 is designed for notebook CPU power-supply applications.

• Common references include MAX8772, MAX8772GTL, MAX8772GTL+ and MAX 8772.

• Verify the exact part number, package and pin configuration before purchase.

• Do not replace the IC solely because it looks similar to another MAX87xx controller.

• Check the pin-1 orientation carefully before installation.

• Professional SMD rework equipment and proper soldering skills are recommended.

• Incorrect installation can damage the IC or laptop motherboard.

• The product includes the IC chip only; motherboard, MOSFETs and other components are not included.

• Make sure the replacement IC matches the original motherboard circuit.

• Payment will be refunded if the product is out of stock.

• Immediate replacement will be provided if there are any functionality problems.

• Warranty will be void in case of physical damage, incorrect installation or soldering damage.

• The product image is for reference and the actual IC marking may vary slightly.

FAQs

1. What is MAX8772GTL?
MAX8772GTL is a 2/1-phase interleaved Quick-PWM step-down power controller IC designed for notebook CPU power-supply applications.

2. Is MAX8772 used in laptop motherboards?
Yes. The MAX8772 family is specifically intended for notebook CPU power circuits.

3. What package does MAX8772GTL use?
The MAX8772GTL uses a 40-pin Thin QFN package measuring 6mm × 6mm.

4. What are the common references for this IC?
Common references include MAX8772, MAX8772GTL, MAX8772GTL+ and MAX 8772.

5. Can MAX8772GTL replace another MAX87xx IC?
Do not assume compatibility. Check the complete part number, package, pin configuration and motherboard circuit before replacement.
