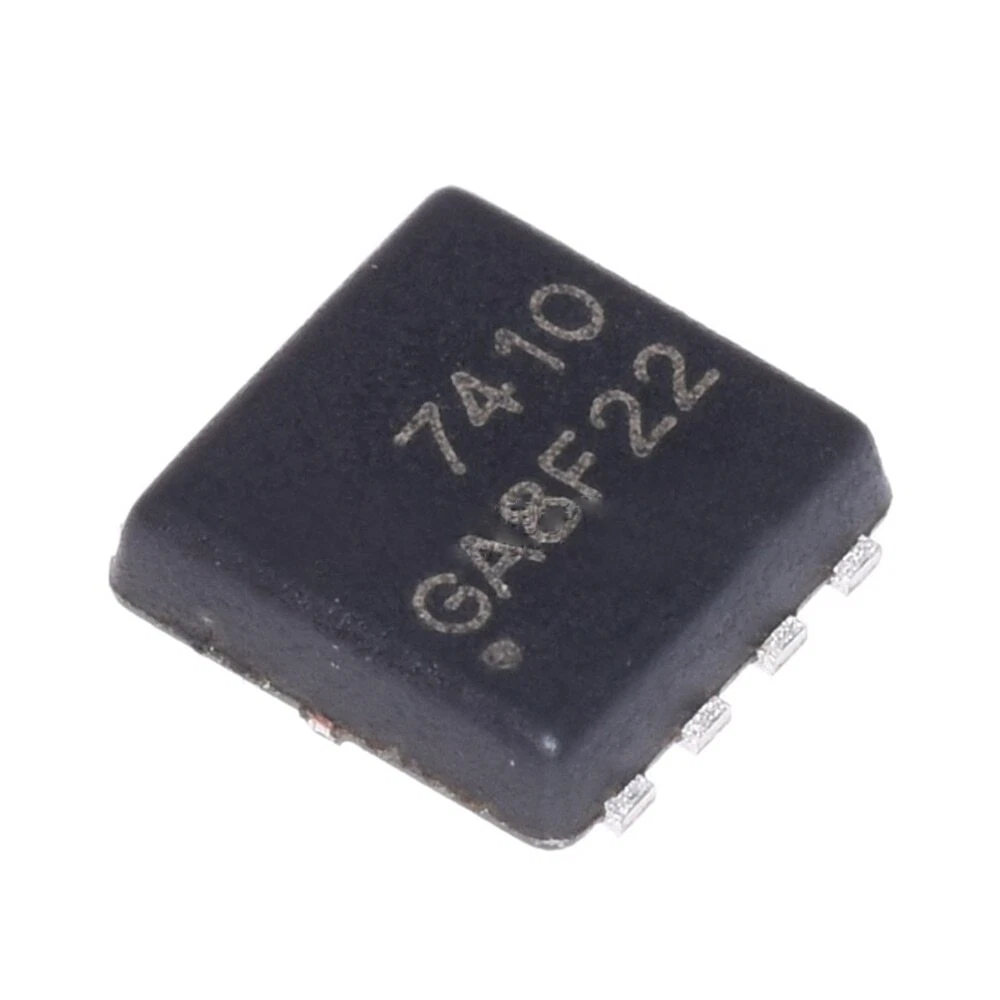

New Laptop Motherboard IC AON7410 AO7410 A07410 MOSFET Laptop IC Chip

Product Description

The New Laptop Motherboard IC AON7410 / AO7410 / A07410 is an N-Channel Power MOSFET used in compatible laptop motherboard power-management and switching circuits. The AON7410 is a 30V N-Channel MOSFET in an 8-pin DFN 3×3 package, while AO7410 is a separate 30V N-Channel MOSFET available in an SC-70 package.

Because AON7410 and AO7410 have different packages and electrical ratings, please carefully match the original component before ordering. The AON7410 is rated up to 24A at 25°C (case) with maximum RDS(on) of 20mΩ at 10V, while AO7410 is rated at 1.7A and uses an SC-70 package

Warranty Details

Warranty: No Warranty

Important Note:-

• Please compare your original component marking with AON7410 / AO7410 / A07410 before ordering.

• AON7410 and AO7410 are not the same package. AON7410 uses an 8-pin DFN 3×3 package, while AO7410 uses an SC-70 package.

• AON7410 is a 30V N-Channel MOSFET with up to 24A drain current under the manufacturer’s specified conditions.

• AO7410 is also a 30V N-Channel MOSFET, but its continuous drain-current rating is 1.7A.

• This is technically a MOSFET semiconductor, not a conventional integrated circuit.

• Verify the exact part number, package, pin configuration and electrical specifications before replacement.

• Do not replace the MOSFET based only on similar appearance.

• Check the original motherboard circuit or boardview when available.

• Check the pin orientation carefully before installation.

• Professional SMD rework equipment and proper soldering skills are recommended.

• Incorrect installation can damage the MOSFET or laptop motherboard.

• The product includes the MOSFET chip only; motherboard and other components are not included.

• Payment will be refunded if the product is out of stock.

• Immediate replacement will be provided if there are any functionality problems.

• Warranty will be void in case of physical damage, incorrect installation or soldering damage.

• The product image is for reference and the actual marking may vary slightly.

FAQs

1. What is AON7410?
AON7410 is a 30V N-Channel Power MOSFET supplied in an 8-pin DFN 3×3 package.

2. What is AO7410?
AO7410 is a 30V N-Channel MOSFET supplied in an SC-70 package and rated for up to 1.7A continuous drain current under the specified conditions.

3. Are AON7410 and AO7410 the same component?
No. They are different MOSFET products with different packages and electrical ratings. Always match the original component carefully.

4. Is AON7410 used in laptop motherboards?
It can be used in compatible power switching, voltage regulation and DC-DC converter circuits, depending on the motherboard design.

5. How can I confirm compatibility?
Compare the complete marking, package, pin configuration, voltage rating, current rating and RDS(on) with the original MOSFET before purchasing.
