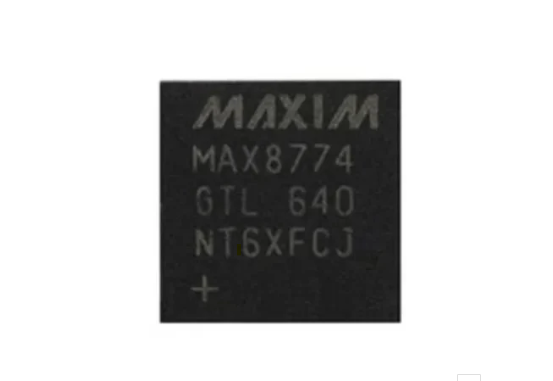

New Laptop Motherboard IC MAX8774GTL MAX8774G TL MAX8774

Product Description

The New Laptop Motherboard IC MAX8774GTL / MAX8774G TL / MAX8774 is a specialized power-management controller IC from Maxim Integrated, now part of Analog Devices. The MAX8774 is designed for notebook CPU power-supply applications and is used in compatible laptop motherboard power circuits.

The MAX8774GTL is available in a 40-pin TQFN package and is associated with power-supply control for notebook CPUs. The manufacturer part-number family includes MAX8774, while MAX8774GTL+T is a tape-and-reel ordering variant.

Warranty Details

Warranty: No Warranty

Important Note:-

• Please compare your original IC marking with MAX8774GTL / MAX8774G / MAX8774 before placing the order.

• The MAX8774GTL uses a 40-pin TQFN package.

• This is a laptop motherboard power-management IC, not a complete motherboard.

• The MAX8774 family is designed for notebook CPU power-supply applications.

• Common search references include MAX8774, MAX 8774, MAX8774GTL and MAX8774G TL.

• Verify the exact part number, package and pin configuration before replacement.

• Do not replace the IC solely because it looks similar to another MAX87xx power controller.

• Check the pin-1 orientation carefully before installation.

• Professional SMD rework equipment and proper soldering skills are recommended.

• Incorrect installation can damage the IC or laptop motherboard.

• The product includes the IC chip only; motherboard, MOSFETs and other components are not included.

• Make sure the replacement package matches the original motherboard design.

• Payment will be refunded if the product is out of stock.

• Immediate replacement will be provided if there are any functionality problems.

• Warranty will be void in case of physical damage, incorrect installation or soldering damage.

• The product image is for reference and the actual IC marking may vary slightly.

FAQs

1. What is MAX8774GTL?
MAX8774GTL is a specialized power-management controller IC designed for notebook CPU power-supply applications.

2. Is MAX8774 used in laptop motherboards?
Yes. The MAX8774 is designed for notebook computer CPU power-management circuits.

3. What package does MAX8774GTL use?
The MAX8774GTL uses a 40-pin TQFN package.

4. What are the common references for this IC?
Common references include MAX8774, MAX 8774, MAX8774GTL and MAX8774G TL.

5. Can MAX8774GTL replace another MAX87xx IC?
No. Do not assume compatibility with another MAX87xx controller. Check the complete part number, package, pin configuration and motherboard circuit before replacement
