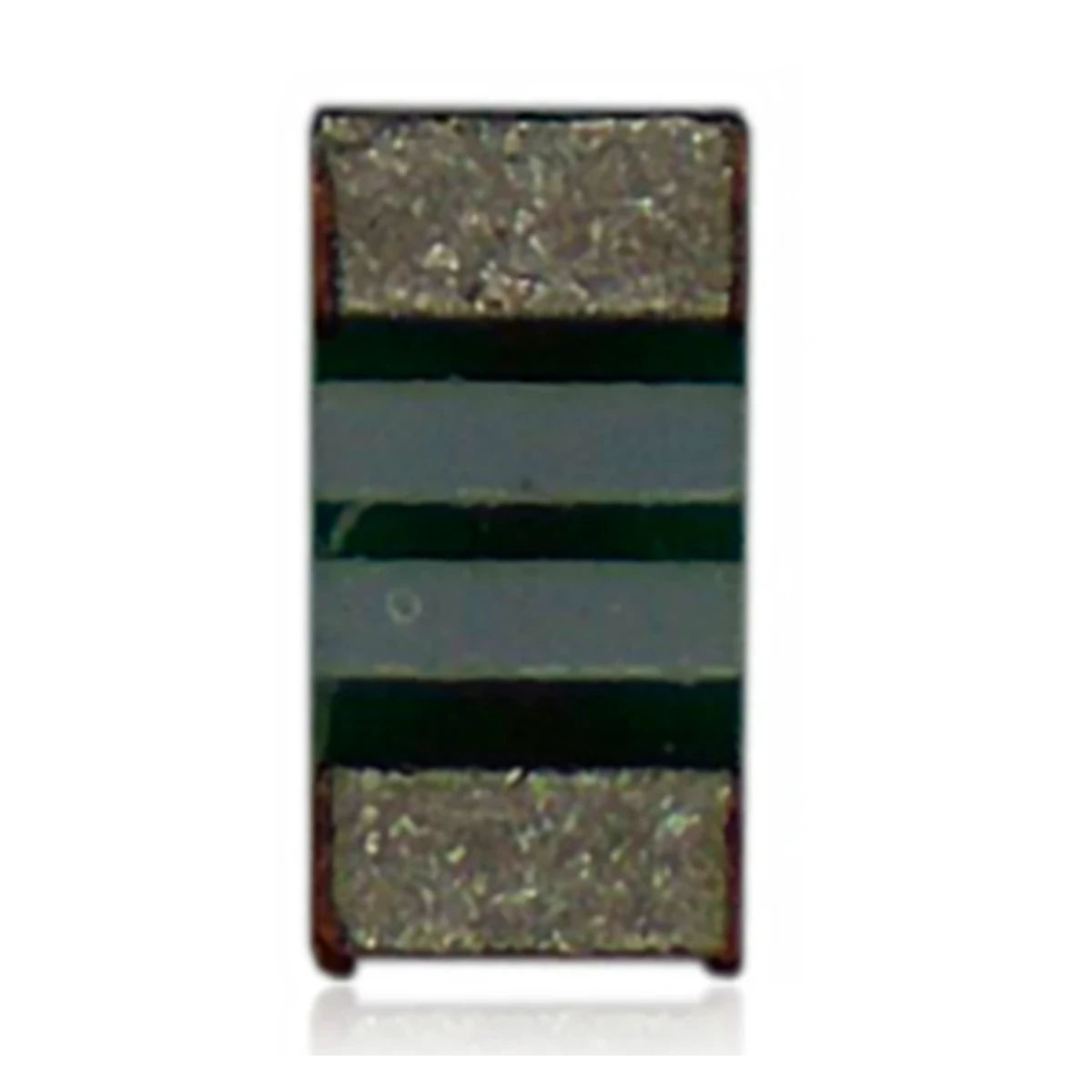

Non-Resettable SMD Surface Mount Fuse for MacBook 32V 4A Panasonic ERBRE4R00V

Product Description

The MacBook SMD Fuse ERBRE4R00V is a non-resettable surface-mount chip fuse designed for circuit protection applications. It is suitable for replacing a blown SMD fuse on compatible MacBook logic boards and other electronic circuits where the original fuse specification matches.

The Panasonic ERBRE4R00V is rated at 32V DC and 4A, with a compact 0603 (1608 metric) package. It is a fast-acting micro chip fuse designed to provide overcurrent protection for sensitive electronic circuits.

This component can be used by professional laptop and MacBook motherboard repair technicians when the original fuse has failed. The replacement must match the original fuse’s current rating, voltage rating, package size, and circuit application.

Compatible Models

• Compatible MacBook logic boards requiring a matching 32V 4A SMD fuse
• Various MacBook motherboard repair applications
• Exact MacBook model compatibility should be verified from the original board and fuse specification

Compatible Part Numbers

• Panasonic ERBRE4R00V
• 32V DC / 4A
• 0603 / 1608 metric

Related fuse reference:

• ERBRD3R00X – 32V / 3A / 0402 — this is a different-rated fuse and should not be substituted for ERBRE4R00V unless the circuit specifically requires it.

Product Details

• Product Type: SMD Chip Fuse
• Fuse Type: Non-Resettable
• Brand: Panasonic
• Model: ERBRE4R00V
• Rated Voltage: 32V DC
• Rated Current: 4A
• Package Size: 0603 / 1608 metric
• Fuse Type: Fast Acting
• Technology: Surface Mount
• Application: Circuit Overcurrent Protection
• Condition: New Replacement Component

Warranty Details

Warranty: No Warranty
Warranty Service Type: No Warranty
Warranty Type: No Warranty

Important Note:-

• This product is a surface-mount fuse, not a conventional IC.
• Please check the exact fuse number, current rating, voltage rating, package size, and board location before ordering.
• ERBRE4R00V is 4A / 32V / 0603, while ERBRD3R00X is 3A / 32V / 0402. They are different components and should not be treated as direct replacements.
• Use the replacement only when its specifications match the original fuse required by the circuit.
• This is a very small SMD component and requires proper soldering equipment and microsoldering skills.
• Professional motherboard repair installation is strongly recommended.
• Incorrect fuse selection or installation can cause further motherboard damage.
• Product images are for reference only. Actual manufacturer markings may vary.
• No warranty is provided for this IC/component product.
• If the product is found to be out of stock after ordering, the payment will be refunded.

FAQs

1. What is the rating of the Panasonic ERBRE4R00V fuse?

The ERBRE4R00V is rated at 32V DC and 4A.

2. What package size is ERBRE4R00V?

The ERBRE4R00V is a 0603 / 1608 metric surface-mount chip fuse.

3. Is ERBRD3R00X the same as ERBRE4R00V?

No. ERBRD3R00X is a 3A 32V 0402 fuse, while ERBRE4R00V is a 4A 32V 0603 fuse. Their electrical ratings and package sizes are different.

4. Can this fuse be used for MacBook motherboard repair?

Yes, it can be used for compatible MacBook circuit-repair applications where the original fuse specification matches ERBRE4R00V. Always verify the board and original fuse specification before replacement.

5. Is this product a resettable fuse?

No. The ERBRE4R00V is a non-resettable micro chip fuse. Once the fuse operates because of excessive current, it must be replaced.
