USB-C Board Compatible with MacBook Pro 13 15 16 A1989 A1990 A2141 A2159 A2251 A2289 A2338

Product Description

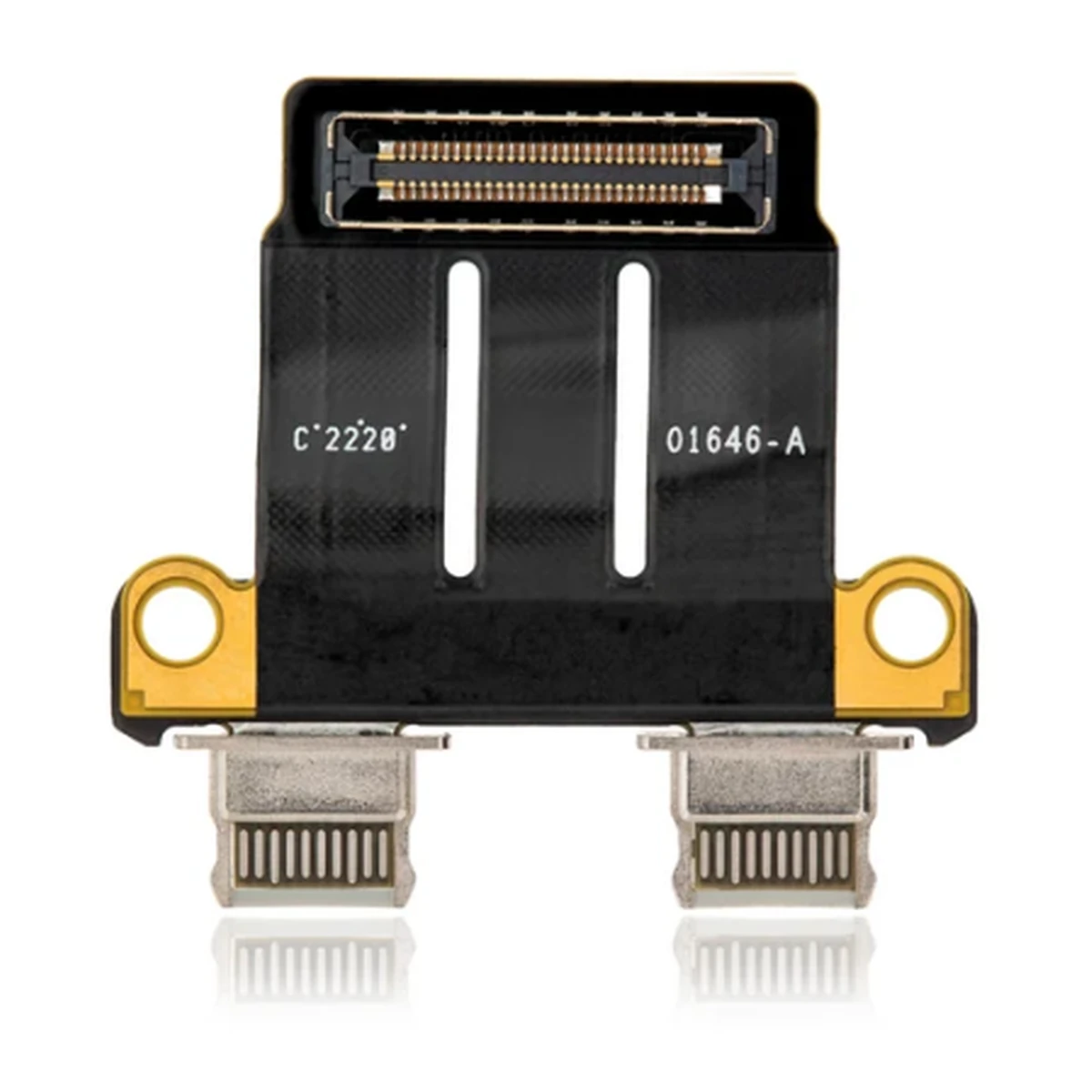

The MacBook Pro USB-C Board is a replacement USB-C / Thunderbolt I/O board designed for compatible MacBook Pro 13-inch, 15-inch, and 16-inch models. It is suitable for replacing a damaged USB-C port board that has charging, data connection, or display-output problems.

This MacBook Pro USB-C Board is compatible with selected MacBook Pro models including A1989, A1990, A2141, A2159, A2251, A2289, and A2338. These models cover MacBook Pro generations from 2018 through the Late 2020 M1 generation.

The board functions as a side I/O board containing the USB-C / Thunderbolt ports. Depending on the exact MacBook Pro model, the board can support functions such as charging, USB data transfer, Thunderbolt connectivity, and display output through the USB-C ports.

A commonly referenced Apple printed part number for this board family is 821-01646-02. Some replacement listings also reference 923-00461, so the original board number, connector arrangement, and physical design should be checked before ordering.

Compatible Models

• MacBook Pro 13-inch A1989 – 2018 / 2019
• MacBook Pro 13-inch A2159 – 2019
• MacBook Pro 13-inch A2251 – 2020
• MacBook Pro 13-inch A2289 – 2020
• MacBook Pro 13-inch A2338 – Late 2020 M1
• MacBook Pro 15-inch A1990 – 2018 / 2019
• MacBook Pro 16-inch A2141 – 2019
• Compatible configurations should be verified before ordering

Compatible Part Numbers

• 821-01646-02
• 923-00461
• Other board revisions may exist depending on the exact MacBook Pro model

Product Details

• Product Type: USB-C / Thunderbolt I/O Board
• Compatible Brand: Apple
• Compatible Series: MacBook Pro
• Compatible Models: A1989 / A1990 / A2141 / A2159 / A2251 / A2289 / A2338
• Display Sizes: 13-inch / 15-inch / 16-inch
• Connector Type: USB-C / Thunderbolt
• Board Function: Charging / Data / Display I/O
• Common PPN: 821-01646-02
• Condition: Replacement Spare Part

Warranty Details

Warranty: 1 Month Warranty
Warranty Service Type: Replacement Warranty
Warranty Type: Seller Warranty

Important Note:-

• Please verify your exact MacBook Pro model number, year, port count, board number, connector, and physical layout before ordering.
• A2338 Late 2020 refers to the M1 MacBook Pro 13-inch model. A2338 was also used for a later M2 generation, so verify the year and board before ordering.
• Different MacBook Pro models can use visually similar USB-C boards. Do not order based only on the screen size or model family.
• Compare the original board’s part number, port arrangement, screw holes, flex connectors, and physical shape before purchase.
• The USB-C board is a separate I/O board and is not the MacBook Pro logic board.
• This product is the USB-C / I/O board only. Logic board, housing, screws, and other laptop components are not included unless specifically stated.
• Professional installation is strongly recommended.
• Product images are for reference only. Actual board markings and revision may vary.
• Warranty does not cover physical damage, liquid damage, broken USB-C connectors, incorrect installation, short circuits, soldering damage, or modification.
• If the product is found to be out of stock after ordering, the payment will be refunded.
• Functionality-related problems reported within the warranty period are eligible for replacement according to warranty terms.

FAQs

1. Is this USB-C board compatible with MacBook Pro A1989?

Yes. The USB-C/Thunderbolt board family is listed for compatible MacBook Pro A1989 13-inch Touch Bar models from 2018 and 2019.

2. Is this USB-C board compatible with A2159, A2251 and A2289?

Yes. Compatibility references include A2159, A2251 and A2289 13-inch MacBook Pro models.

3. Is A2338 the M1 MacBook Pro model?

Yes. A2338 Late 2020 identifies the 13-inch MacBook Pro with the Apple M1 processor. However, A2338 was also used for a later M2 model, so the year must be checked.

4. What is the common part number?

A commonly referenced printed part number is 821-01646-02. Some replacement listings also use 923-00461, so matching the original board is recommended.

5. What problems can a faulty USB-C board cause?

A damaged USB-C board can cause problems with charging, USB-C device connectivity, Thunderbolt connections, or display output on the affected port side.
