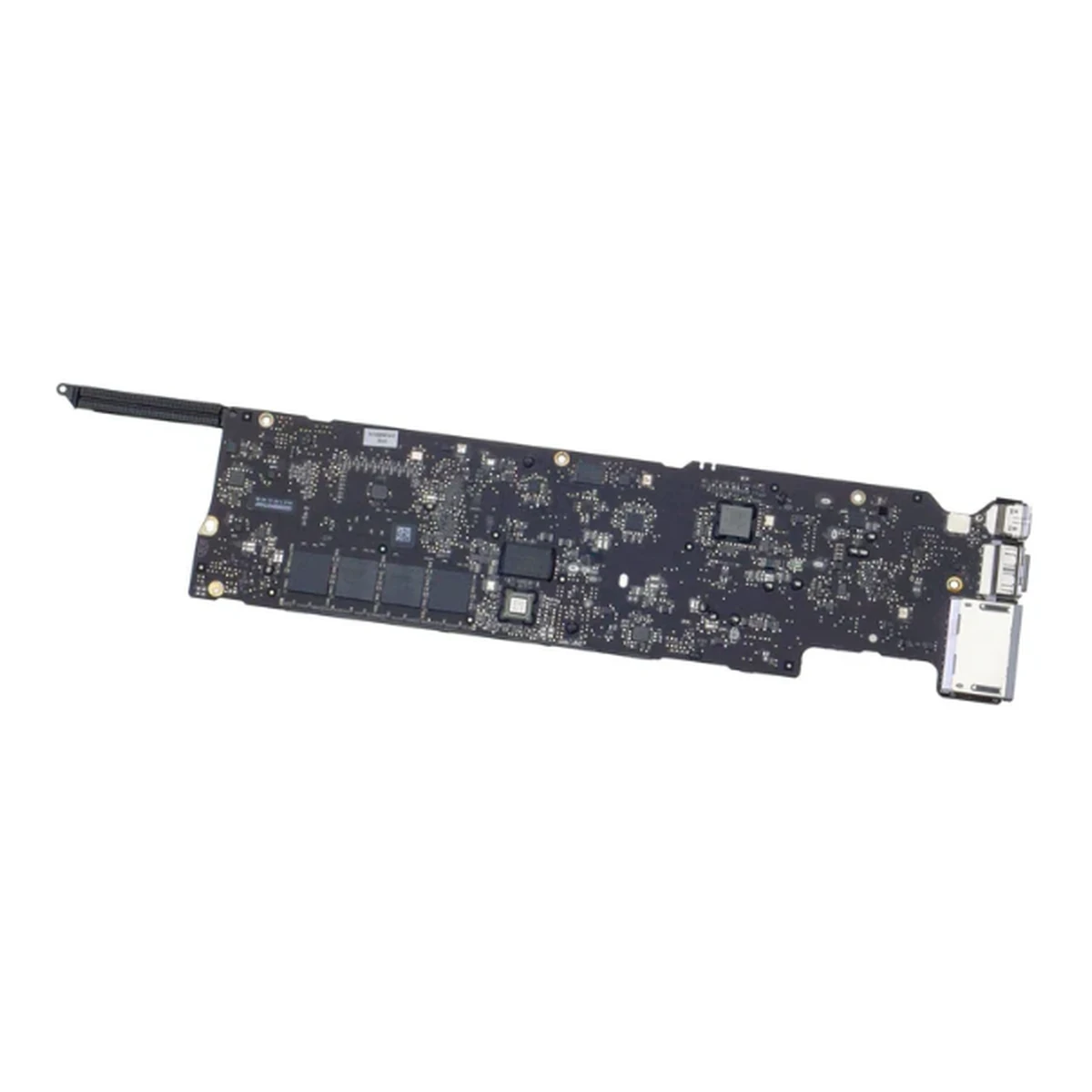

Motherboard for MacBook Air 13″ A1466 Early 2015 Mid 2017

Product Description

The MacBook Air A1466 Early 2015 Mid 2017 Motherboard is a replacement logic board designed for the 13-inch MacBook Air A1466. It is compatible with the MacBookAir7,2 platform used in Early 2015 and Mid 2017 models.

This MacBook Air A1466 Motherboard is suitable for replacing a damaged or faulty logic board affected by power, boot, charging, processing, or other motherboard-related problems. The board family is identified by 820-00165-A / 820-00165-02.

Different A1466 configurations use different processor and RAM combinations. Common Apple part numbers include 661-02391, 661-02392, 661-02394, and 661-08140. Therefore, the original board configuration should be matched before ordering.

Compatible Models

• MacBook Air 13-inch A1466 Early 2015
• MacBook Air 13-inch A1466 Mid 2017
• MacBookAir7,2
• EMC 2925 – Early 2015
• EMC 3178 – Mid 2017
• MJVE2LL/A
• MJVG2LL/A
• MMGF2LL/A
• MMGG2LL/A
• MQD32LL/A
• MQD42LL/A
• MQD52LL/A
• Z0UU1LL/A

Compatible Part Numbers

• 820-00165-A
• 820-00165-02
• 661-02391 – 1.6GHz Core i5, 4GB
• 661-02392 – 1.6GHz Core i5, 8GB
• 661-02394 – 2.2GHz Core i7, 8GB
• 661-08140 – 1.8GHz Core i5, 8GB

Product Details

• Product Type: Laptop Motherboard / Logic Board
• Compatible Brand: Apple
• Compatible Model: MacBook Air 13-inch A1466
• Compatible Years: Early 2015 / Mid 2017
• Model Identifier: MacBookAir7,2
• Board Number: 820-00165-A / 820-00165-02
• CPU: Intel Core i5 / Core i7 depending on board configuration
• Graphics: Intel HD Graphics 6000
• RAM: 4GB / 8GB depending on board configuration
• RAM Type: Onboard LPDDR3
• Condition: Replacement Spare Part

Warranty Details

Warranty: 1 Month Warranty
Warranty Service Type: Replacement Warranty
Warranty Type: Seller Warranty

Important Note:-

• Please verify your exact A1466 model, EMC number, processor, RAM capacity, and original motherboard part number before ordering.
• 820-00165-A and 820-00165-02 identify the main board family, but CPU/RAM configurations can differ.
• The CPU and RAM are soldered/onboard and cannot be upgraded separately like socketed components.
• Early 2015 and Mid 2017 A1466 boards should not be selected solely by the A1466 model number; match the original board configuration carefully.
• This product is the motherboard/logic board. SSD, battery, display, keyboard, charger, and other components are not included unless specifically stated.
• Some motherboard listings include the heatsink, while others are board-only. Confirm package contents before ordering.
• Professional motherboard installation is strongly recommended.
• Product images are for reference only. Actual board revision, markings, and condition may vary.
• Warranty does not cover physical damage, liquid damage, incorrect installation, short circuits, soldering damage, or modification.
• If the product is found to be out of stock after ordering, the payment will be refunded.
• Functionality-related problems reported within the warranty period are eligible for replacement according to warranty terms.

FAQs

1. Is this motherboard compatible with MacBook Air A1466 Early 2015?

Yes. The 820-00165 board family is used in compatible 13-inch MacBook Air A1466 Early 2015 configurations.

2. Is this motherboard compatible with MacBook Air A1466 Mid 2017?

Yes. The same board family is listed for compatible A1466 Mid 2017 configurations, including 1.8GHz Core i5 versions.

3. What is the main motherboard number?

The main board family is 820-00165-A / 820-00165-02. Apple part numbers vary according to the CPU and RAM configuration.

4. What processors are available on this motherboard?

Compatible boards can have 1.6GHz Core i5, 1.8GHz Core i5, or 2.2GHz Core i7 processors depending on the exact board configuration.

5. Can the RAM or CPU be upgraded separately?

No. The CPU and RAM are onboard/soldered to the logic board, so the exact required configuration should be selected when purchasing the replacement motherboard.
