Motherboard for MacBook Air 13 A1466 Mid 2012

Product Description

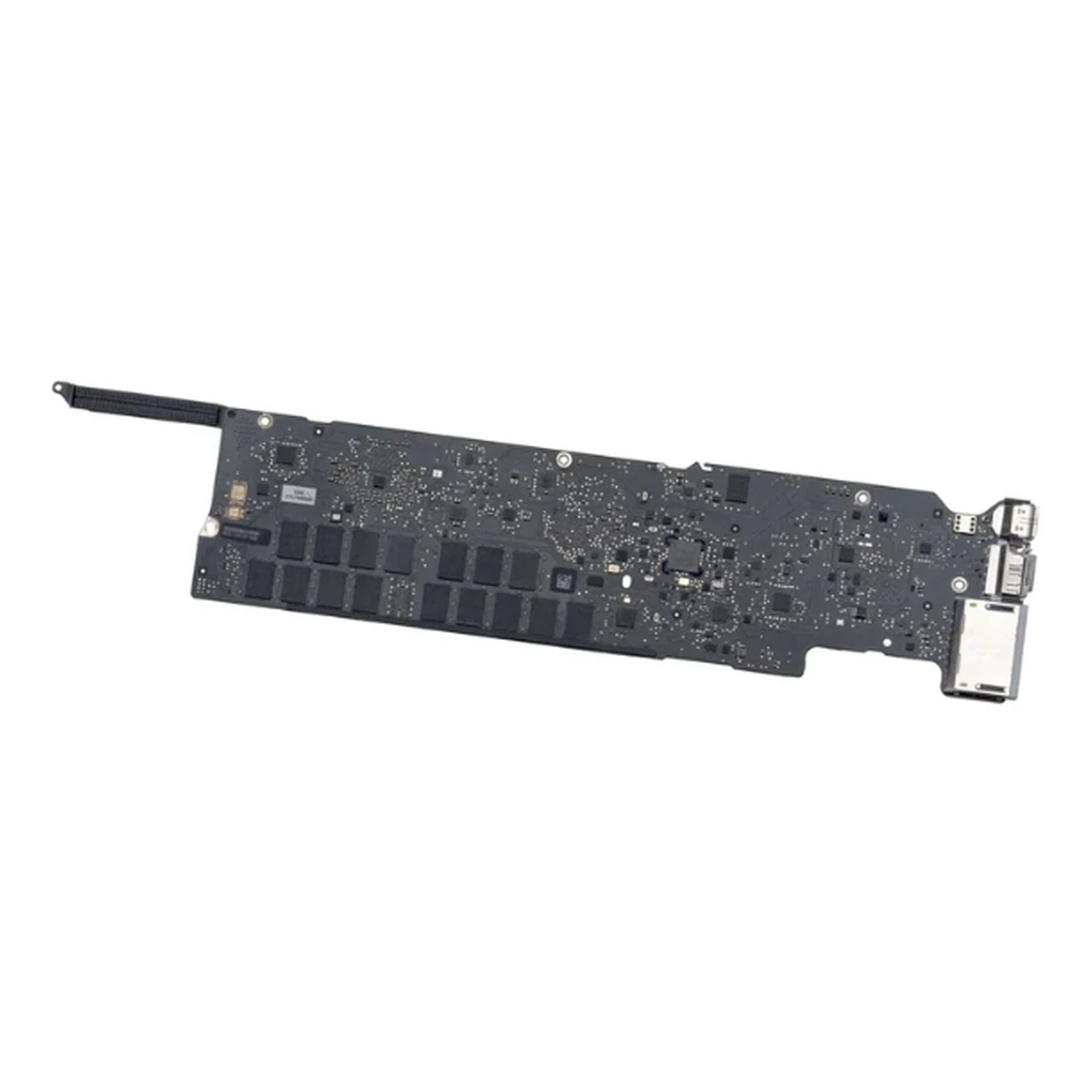

The MacBook Air A1466 Mid 2012 Motherboard is a replacement logic board designed for the 13-inch MacBook Air A1466, also identified as MacBookAir5,2 and EMC 2559. It is suitable for replacing a damaged or faulty motherboard in compatible Mid 2012 MacBook Air systems.

The Mid 2012 A1466 motherboard is based on the 820-3209-A board family. Compatible configurations include 1.8GHz Intel Core i5 and 2.0GHz Intel Core i7 versions, with Intel HD Graphics 4000. Different board configurations also have different onboard RAM capacities, so the exact Apple part number should be checked before ordering.

Common Apple part numbers for the Mid 2012 A1466 logic board include 661-6631, 661-6632, 661-6633, 661-6634, and 661-6680, depending on the processor and memory configuration.

Compatible Models

• MacBook Air 13-inch A1466 Mid 2012
• MacBookAir5,2
• EMC 2559
• MD231LL/A – 1.8GHz Intel Core i5
• MD232LL/A – 1.8GHz Intel Core i5
• MD232LL/A – 2.0GHz Intel Core i7 configuration
• MD846LL/A – 2.0GHz Intel Core i7
• MD628LL/A – 1.7GHz Core i5 Education configuration

Compatible Part Numbers

• 820-3209-A
• 820-3209
• 661-6631
• 661-6632
• 661-6633
• 661-6634
• 661-6680

Product Details

• Product Type: Laptop Motherboard / Logic Board
• Compatible Brand: Apple
• Compatible Model: MacBook Air 13-inch A1466
• Generation: Mid 2012
• Model Identifier: MacBookAir5,2
• EMC: 2559
• Board Number: 820-3209-A
• CPU Options: 1.8GHz Core i5 / 2.0GHz Core i7
• GPU: Intel HD Graphics 4000
• RAM: Configuration-dependent, 4GB or 8GB
• Condition: Replacement Spare Part

Warranty Details

Warranty: 1 Month Warranty
Warranty Service Type: Replacement Warranty
Warranty Type: Seller Warranty

Important Note:-

• Please verify your exact A1466 model, EMC number, processor, RAM configuration, and original motherboard part number before ordering.
• The Mid 2012 A1466 uses the 820-3209-A motherboard family.
• Do not confuse the Mid 2012 A1466 board with later A1466 logic boards such as the 820-3437-B used in later generations.
• CPU and RAM are onboard components; they cannot be upgraded independently from the logic board.
• Apple part numbers differ according to CPU and RAM configuration. Match the original board before purchasing.
• This product is the motherboard/logic board. SSD, battery, display, keyboard, charger, and other components are not included unless specifically stated.
• Some replacement logic-board listings may include a heatsink, while others may be board-only. Confirm the exact package contents before ordering.
• Professional motherboard installation is strongly recommended.
• Product images are for reference only. Actual board revision, markings, and condition may vary.
• Warranty does not cover physical damage, liquid damage, incorrect installation, short circuits, soldering damage, or modification.
• If the product is found to be out of stock after ordering, the payment will be refunded.
• Functionality-related problems reported within the warranty period are eligible for replacement according to warranty terms.

FAQs

1. Is this motherboard compatible with MacBook Air A1466 Mid 2012?

Yes. The 820-3209-A logic board is designed for the 13-inch MacBook Air A1466 Mid 2012 / MacBookAir5,2 / EMC 2559.

2. What is the motherboard part number?

The main printed board number is 820-3209-A. Common Apple part numbers include 661-6631, 661-6632, 661-6633, 661-6634, and 661-6680.

3. Which processors are available for the Mid 2012 A1466 motherboard?

Compatible configurations include 1.8GHz Intel Core i5 and 2.0GHz Intel Core i7, depending on the exact board configuration.

4. Does the motherboard have Intel HD Graphics 4000?

Yes. The Mid 2012 A1466 logic board uses Intel HD Graphics 4000 integrated with the processor platform.

5. Can I upgrade the RAM or CPU separately?

No. The CPU and RAM are onboard components of the logic board, so the configuration is determined by the motherboard you purchase.
