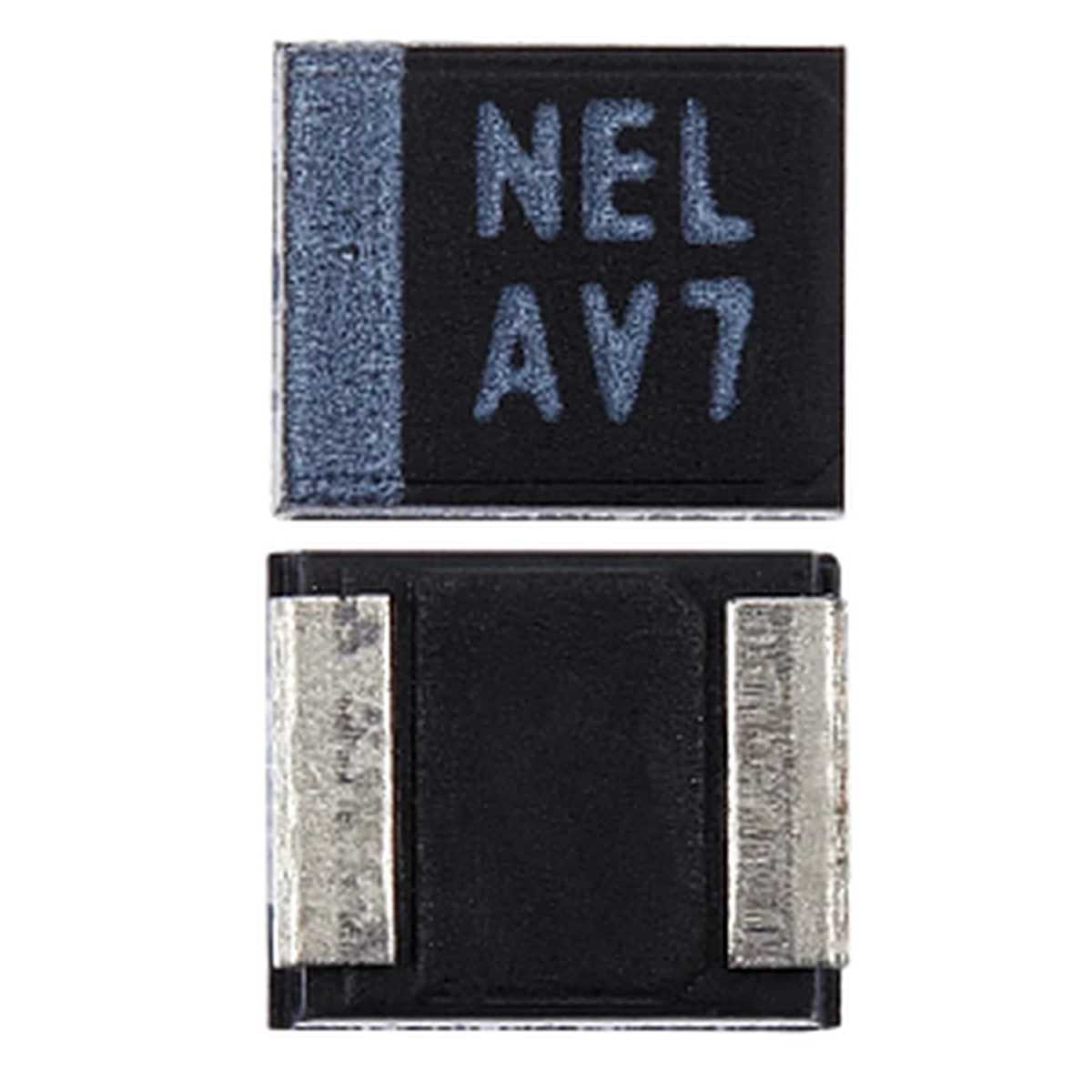

Reverse-Current Protection PBus Supply Battery Charger Tantalum Capacitor AV7 for MacBook 62UF 11V

Product Description

The MacBook 62UF 11V AV7 Tantalum Capacitor is a replacement board-level capacitor used in MacBook power supply and battery charging circuitry. It is intended for motherboard repair where the original capacitor is damaged, shorted, or missing.

This AV7 tantalum capacitor is commonly identified as a 62µF, 11V tantalum-polymer capacitor. Repair references identify the AV7 marking with approximately 62µF capacitance and an 11V voltage rating.

The component is associated with the PBus supply, reverse-current protection, and battery-charging power circuitry on compatible MacBook logic boards. Replacement should only be performed by a qualified board-level technician using the correct polarity, package, and electrical specifications.

Compatible Models

• Compatible Apple MacBook logic boards requiring an AV7 62µF 11V capacitor
• MacBook Air and MacBook Pro logic boards where the original component matches the same specification
• Compatibility should be confirmed by the board number, circuit location, original component marking, capacitance, voltage, and package

Compatible Part Numbers / Markings

• AV7
• 62µF / 11V
• 62UF 11V
• Common marking reference: NEb AV7
• Tantalum-polymer capacitor
• Case B2S-1 package reference has been reported for this component family

Product Details

• Product Type: Tantalum / Tantalum-Polymer Capacitor
• Application: MacBook Logic Board Repair
• Capacitance: 62µF
• Voltage Rating: 11V
• Marking: AV7
• Circuit Application: PBus Supply / Battery Charging / Reverse-Current Protection
• Component Type: Board-Level Replacement Component
• Installation: SMD Board Repair
• Condition: New Replacement Component

Warranty Details

Warranty: No Warranty
Warranty Service Type: Component Replacement
Warranty Type: No Warranty

Important Note:-

• This is a board-level electronic component, not a complete charging IC or battery charger.
• Please verify the original capacitor marking, capacitance, voltage rating, polarity, package size, and motherboard circuit location before ordering.
• The AV7 marking is associated with a 62µF 11V capacitor, but markings and manufacturer codes should be checked against the original component.
• Correct polarity is essential when installing a polarized tantalum capacitor.
• Professional microsoldering and board-level installation is strongly recommended.
• Incorrect installation, excessive heat, wrong polarity, or incorrect component selection can damage the logic board.
• This component is intended for qualified repair technicians and board-level MacBook repair.
• Product images are for reference only. Actual marking, manufacturer, and appearance may vary.
• No warranty is provided for this IC/component.
• If the product is found to be out of stock after ordering, the payment will be refunded.

FAQs

1. What is the AV7 capacitor used for in MacBooks?

The AV7 capacitor is used in MacBook power-related circuitry, including areas associated with the PBus supply, battery charging, and reverse-current protection.

2. What is the value of the AV7 capacitor?

The AV7 component is commonly identified as a 62µF, 11V tantalum-polymer capacitor.

3. Is this a battery charging IC?

No. This is a tantalum capacitor, not a battery charging IC. It is a passive component used within the power and charging circuitry.

4. Can I replace the AV7 capacitor myself?

Board-level replacement requires microsoldering equipment and experience. Professional installation by a qualified technician is recommended.

5. How do I confirm that this capacitor is correct for my MacBook?

Check the logic-board number, original component marking, capacitance, voltage rating, package size, polarity, and circuit location before replacing the component.
