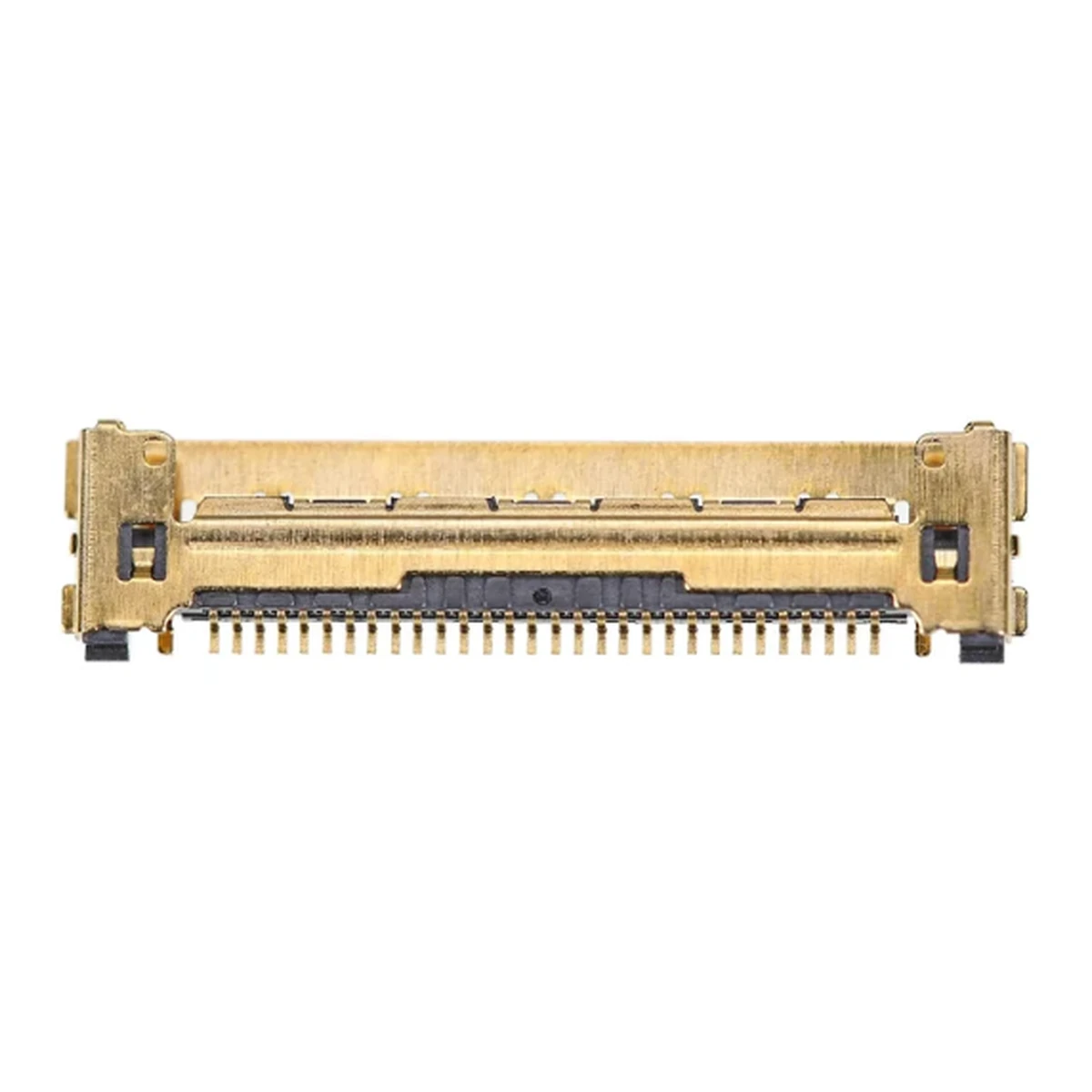

30 Pin LVDS Display Connector for MacBook A1425 A1502 A1398 A1278 A1466 A1465

Product Description

The MacBook 30 Pin LVDS Display Connector is a replacement board-side connector designed for repairing a damaged or broken LCD display connector on compatible MacBook logic boards. It is suitable for micro-soldering repair when the original connector has been damaged.

This 30 Pin LVDS Display Connector is listed for compatible MacBook models including A1425, A1502, A1398, A1278, A1466, and A1465. Compatibility depends on the exact logic-board revision and connector design, so the original connector should be compared before ordering.

Common identification numbers for this connector include 518S0787, 518S0829, and the printed part marking 20525-130E-01. The connector is used to connect the LCD display cable to the logic board.

Compatible Models

• MacBook Pro 13-inch A1278
• MacBook Pro Retina 13-inch A1425
• MacBook Pro Retina 13-inch A1502
• MacBook Pro Retina 15-inch A1398
• MacBook Air 13-inch A1466
• MacBook Air 11-inch A1465
• Compatible board revisions should be verified before installation

Compatible Part Numbers

• 518S0787
• 518S0829
• 20525-130E-01 – printed marking
• 30-pin I-PEX/LVDS connector

Product Details

• Product Type: LCD Display Connector
• Connector Type: 30-Pin LVDS
• Compatible Brand: Apple
• Compatible Models: A1278 / A1425 / A1502 / A1398 / A1466 / A1465
• Installation Type: Board-Level Micro-Soldering
• Part Numbers: 518S0787 / 518S0829
• Printed Marking: 20525-130E-01
• Condition: Replacement Spare Part

Warranty Details

Warranty: 1 Month Warranty
Warranty Service Type: Replacement Warranty
Warranty Type: Seller Warranty

Important Note:-

• Please verify your exact MacBook model, logic-board revision, connector shape, pin count, and original connector marking before ordering.
• This is a 30-pin board-side LCD/LVDS connector, not a complete LCD display cable.
• Common identification numbers include 518S0787, 518S0829, and 20525-130E-01.
• Compatibility can vary between logic-board revisions even when the MacBook model number is the same. Compare the original connector carefully.
• Installation requires micro-soldering equipment and professional repair skills.
• Incorrect installation can damage the logic board, display circuit, or connector pads.
• This product is the connector only. LCD panel, display cable, logic board, and other components are not included.
• Product images are for reference only. Actual markings and appearance may vary slightly.
• Warranty does not cover physical damage, soldering damage, lifted PCB pads, incorrect installation, or modification.
• If the product is found to be out of stock after ordering, the payment will be refunded.
• Functionality-related problems reported within the warranty period are eligible for replacement according to warranty terms.

FAQs

1. What is a 30 Pin LVDS Display Connector?

It is a board-side connector used to connect a compatible LCD display cable to the MacBook logic board.

2. Is this connector compatible with MacBook A1502?

Yes. The 30-pin display connector is listed for compatible MacBook Pro Retina A1502 logic boards, subject to matching the exact connector and board revision.

3. What are the common part numbers?

The common identification numbers are 518S0787 and 518S0829, with the printed marking 20525-130E-01.

4. Does this product include the LCD cable?

No. This product is the 30-pin LCD/LVDS connector only. The display cable must be purchased separately unless specifically included in the product listing.

5. Can I install this connector myself?

Professional micro-soldering repair is strongly recommended. The connector is soldered directly to the logic board and requires suitable equipment and repair skills.
