ANPEC APW8819 APW8819QA APW8819QB Power IC for Laptop Motherboard

Product Description

Buy the ANPEC APW8819 Power IC for compatible laptop motherboards from LaptopHub. This power management integrated circuit is designed for DDR2 and DDR3 memory power supply applications and helps regulate the voltage required by compatible motherboard memory circuits.

The APW8819 combines a synchronous buck PWM controller with a 1.5A linear regulator (LDO). It generates the VDDQ memory supply and provides VTT and VTTREF outputs required by compatible DDR memory power systems.

A faulty power IC may contribute to memory power supply problems, unstable motherboard operation, failure to initialize RAM, or system startup issues. Replacing the defective IC may restore the memory power circuit when the controller itself is identified as the source of the fault.

This component is suitable for professional laptop motherboard repair, power circuit troubleshooting, and chip-level electronic servicing.

Before ordering, verify the complete IC marking, package type, pin configuration, PCB footprint, and original motherboard component. The QA and QB versions use different package configurations and should not be treated as interchangeable without checking the datasheet and motherboard design.

Product Features

• ANPEC APW8819 DDR memory power solution.
• Synchronous buck PWM controller.
• Integrated 1.5A sourcing and sinking LDO regulator.
• Designed for compatible DDR2 and DDR3 memory power supplies.
• Supports VDDQ memory voltage regulation.
• Provides VTT and VTTREF outputs.
• Supports adjustable VDDQ output.
• Integrated MOSFET drivers.
• Built-in overvoltage and undervoltage protection.
• Adjustable current-limit protection.
• Suitable for professional motherboard-level repair.

Compatible Part Numbers

• APW8819
• APW8819QA
• APW8819QB
• APW8819QAI
• APW8819QBI

Manufacturer: ANPEC Electronics Corporation

Package identification:

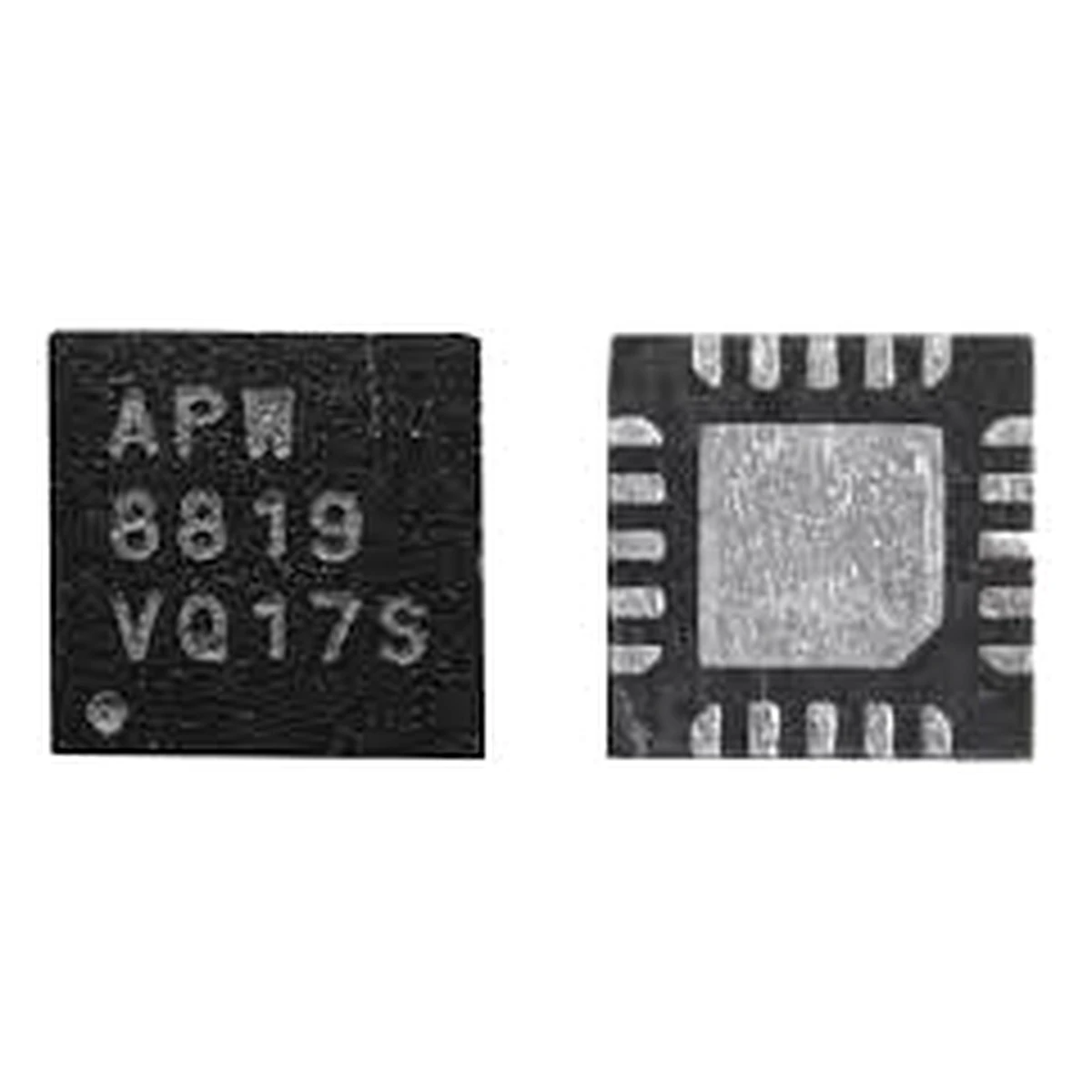

• QA: QFN-20 package, 3mm × 3mm
• QB: TQFN-16 package, 3mm × 3mm

Important: APW8819QA and APW8819QB have different pin counts and package configurations. They are not direct physical replacements for each other. Verify the original IC marking and motherboard footprint before purchasing.

Product Details

• Product Category: Laptop Motherboard Spare Parts
• Product Name: Power Management IC
• Manufacturer: ANPEC Electronics Corporation
• Main Part Number: APW8819
• Related Part Numbers: APW8819QA, APW8819QB
• Ordering Variants: APW8819QAI, APW8819QBI
• Component Type: Integrated Circuit (IC)
• Main Function: DDR Memory Power Management
• Controller Type: Synchronous Buck PWM Controller
• Integrated Regulator: 1.5A LDO
• Memory Applications: DDR2 and DDR3
• Input Voltage Range: 3V–28V
• VDDQ Output: 1.8V, 1.5V, or adjustable from 0.5V to 2V
• VTT Output: Tracks approximately half of VDDQ
• VTTREF Output: Buffered reference voltage
• Switching Frequency: Selectable 300kHz, 400kHz, and 500kHz
• Package QA: QFN-20, 3mm × 3mm
• Package QB: TQFN-16, 3mm × 3mm
• Installation Type: Surface Mount Technology (SMT)
• Application: Compatible laptop and computer motherboards
• Product Condition: New, subject to supplied stock
• Installation Recommendation: Professional IC technician

Power IC Function

The APW8819 is designed to provide a complete power solution for compatible DDR memory systems.

Its main functions include:

• VDDQ Regulation: Generates the required DDR memory supply voltage through a synchronous buck controller.
• VTT Regulation: Provides a sourcing and sinking linear regulator output.
• VTTREF Generation: Provides a buffered reference voltage for compatible memory circuits.
• PWM Control: Controls the switching operation of the buck converter.
• Power Monitoring: Monitors the output voltage and provides power-good signaling.
• Overvoltage Protection: Protects against excessive output voltage.
• Undervoltage Protection: Helps protect the memory power circuit against low output voltage.
• Current-Limit Protection: Provides adjustable current limiting.

The exact power requirements depend on the motherboard design and installed memory technology.

Common Symptoms of a Faulty APW8819 Power IC

A defective APW8819 may be associated with the following motherboard problems:

• Laptop fails to start or complete POST.
• RAM is not detected correctly.
• Laptop does not initialize memory.
• Unstable system operation or unexpected shutdowns.
• Missing or incorrect DDR memory supply voltage.
• Abnormal VDDQ, VTT, or VTTREF readings.
• Memory-related motherboard startup problems.

Diagnostic Note: These symptoms do not automatically confirm a faulty APW8819. RAM modules, MOSFETs, inductors, capacitors, BIOS issues, damaged PCB tracks, and other power supply components can cause similar problems. Check the relevant voltage rails before replacing the IC.

Installation and Repair Guidance

The APW8819 is a surface-mount motherboard component requiring professional chip-level repair equipment.

1. Identify the original APW8819 IC on the motherboard.
2. Verify whether the original component is QA or QB.
3. Check the motherboard schematic or boardview.
4. Measure the input supply and relevant memory power rails.
5. Inspect surrounding MOSFETs, inductors, resistors, and capacitors.
6. Remove the defective IC using suitable hot-air rework equipment.
7. Clean and prepare the PCB pads carefully.
8. Align the replacement IC according to its package and pin-1 marking.
9. Solder the replacement using the appropriate rework procedure.
10. Inspect solder joints for shorts, bridging, and alignment problems.
11. Verify VDDQ, VTT, VTTREF, and power-good operation.

Professional installation is strongly recommended. Incorrect soldering, overheating, or package mismatch can damage the IC and motherboard PCB.

Warranty Details

No Warranty

Important Note

• Verify the complete APW8819 marking before placing your order.
• Confirm whether your original motherboard uses APW8819QA or APW8819QB.
• QA uses a QFN-20 package, while QB uses a TQFN-16 package.
• Do not treat QA and QB as interchangeable.
• Check the pin configuration, package dimensions, and PCB footprint.
• Verify the motherboard’s DDR memory power circuit before replacement.
• Check VDDQ, VTT, VTTREF, and input supply requirements.
• Diagnose surrounding MOSFETs and passive components before replacing the power IC.
• This component is intended for professional motherboard-level repair.
• Proper SMT soldering and chip-level installation equipment are required.
• Using an incompatible IC may damage the motherboard or memory power circuit.
• If the product is out of stock, your payment will be refunded according to the applicable order process.
• Ensure your delivery address includes the correct PIN code and contact number.
• Product images are for reference; the supplied component may differ slightly in appearance.

Frequently Asked Questions

1. What is the ANPEC APW8819 Power IC used for?

The APW8819 is a DDR memory power management IC used in compatible motherboards. It regulates VDDQ and provides VTT and VTTREF outputs for DDR2 and DDR3 memory power systems.

2. What is the difference between APW8819QA and APW8819QB?

APW8819QA uses a QFN-20 package, while APW8819QB uses a TQFN-16 package. They have different pin configurations and should not be considered direct replacements.

3. Can a faulty APW8819 cause RAM detection problems?

Yes. A faulty memory power controller may prevent the motherboard from generating the correct memory supply voltages, potentially causing RAM initialization or startup problems.

4. Is the APW8819 compatible with DDR2 and DDR3 motherboards?

The APW8819 is designed for DDR2 and DDR3 memory power applications. Actual compatibility depends on the motherboard’s power circuit and original IC configuration.

5. Does the APW8819 Power IC come with a warranty?

No. This IC product is supplied without warranty.
