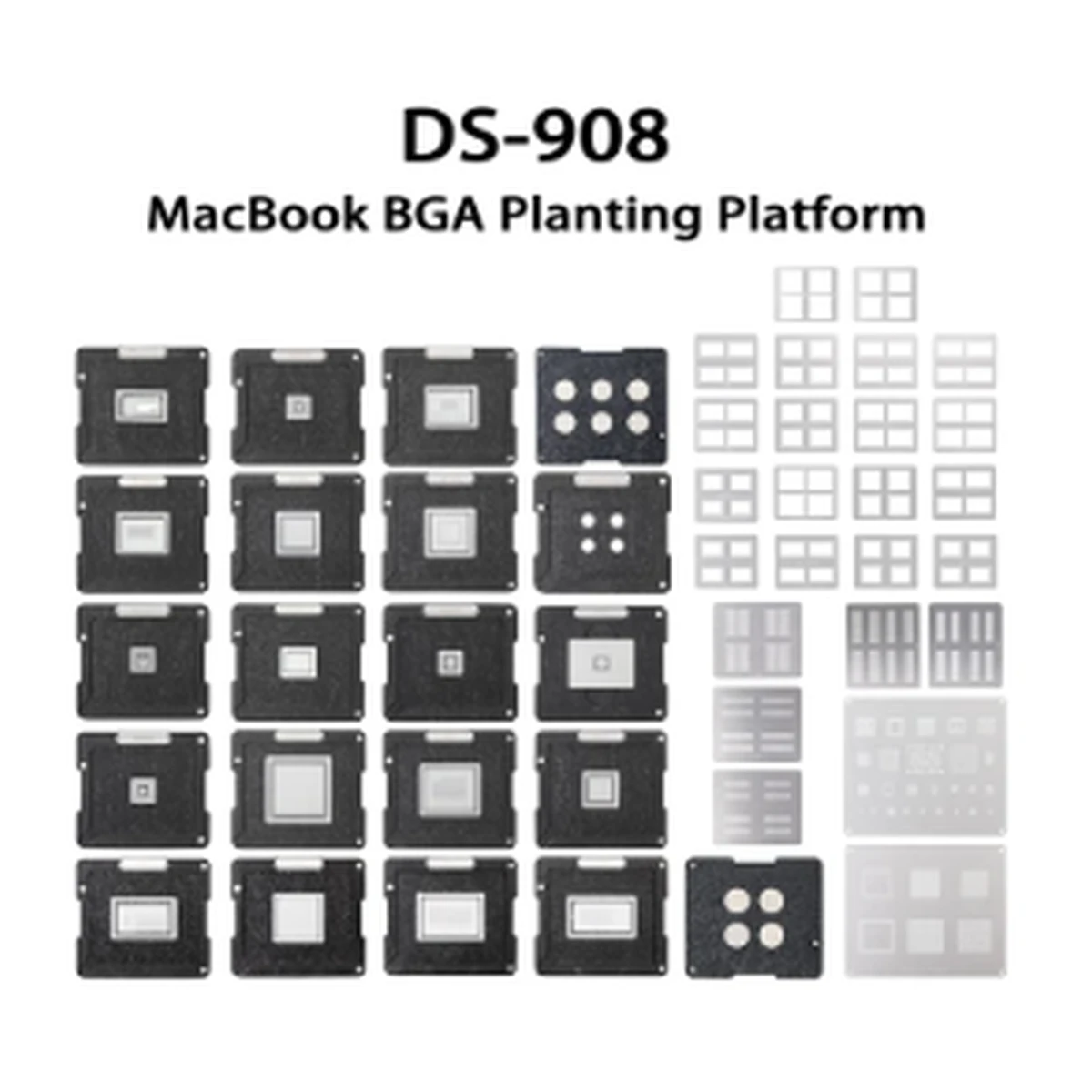

DS-908 MacBook BGA Reballing Platform Tool Set

Product Description

The DS-908 MacBook BGA Reballing Platform Tool Set is a professional motherboard repair tool kit designed for BGA reballing of MacBook Air, MacBook Pro and MacBook logic-board chips. It provides multiple dedicated stencils and magnetic base platforms for working with different CPU, GPU, PCH, SMC, Type-C, RAM, NAND and other BGA components.

This DS-908 MacBook BGA Reballing Platform Tool Set includes stencils covering a range of MacBook chip packages from approximately 2010–2018. The supplied stencil set includes solutions for selected MacBook Pro, MacBook Air and iMac chips, with different solder-ball diameters depending on the chip.

The set includes 3 GPU stencils, 8 CPU stencils, 2 PCH stencils, 3 SMC stencils, a Type-C control-chip stencil, RAM/video-memory stencil, BGA chip stencils and a Touch Bar/fingerprint control-chip stencil, together with magnetic base platforms.

Compatible Models

The DS-908 stencil set covers selected MacBook and iMac boards, including:

• MacBook Pro A1278
• MacBook Pro A1286
• MacBook Pro A1398
• MacBook Pro A1425
• MacBook Pro A1502
• MacBook Pro A1706
• MacBook Pro A1707
• MacBook Pro A1708
• MacBook Air A1369
• MacBook Air A1370
• MacBook Air A1465
• MacBook Air A1466
• MacBook A1534
• MacBook Air A1932
• Selected iMac 2010–2012 boards

Compatibility depends on the individual chip and stencil supplied in the kit.

Compatible Chip Types

• AMD GPU
• Intel CPU
• PCH
• SMC
• Type-C / USB-C control chip
• RAM and video memory
• NAND and small BGA chips
• Touch Bar and fingerprint control chip
• Power-management and other small BGA chips

Product Details

• Product Type: BGA Reballing Platform Tool Set
• Model: DS-908
• Application: MacBook Motherboard Repair
• Tool Type: BGA Reballing / Stencil Platform
• GPU Stencils: 3
• CPU Stencils: 8
• PCH Stencils: 2
• SMC Stencils: 3
• Type-C Control Chip Stencil: 1
• RAM / Video Memory Stencil: 1
• Touch Bar / Fingerprint Control Stencil: 1
• Magnetic Base Platforms: 2
• Solder Ball Sizes: Approximately 0.25mm–0.5mm depending on stencil
• Condition: New Repair Tool Set

Warranty Details

Warranty: No Warranty
Warranty Service Type: Tool/Product Sale
Warranty Type: No Warranty

Important Note:-

• The DS-908 is a professional BGA reballing tool set, not a laptop motherboard or replacement IC.
• Stencil compatibility depends on the specific chip package and board generation.
• Different stencils require different solder-ball diameters, including approximately 0.25mm, 0.35mm, 0.4mm, 0.45mm and 0.5mm depending on the application.
• Please verify the chip model, stencil pattern and required solder-ball size before starting a repair.
• The kit is intended for technicians experienced with BGA reballing and motherboard-level repair.
• Proper heating equipment, solder balls/paste, flux and other rework equipment may be required separately.
• Product images are for reference. Actual stencil markings and supplied components should be checked against the package contents.
• Incorrect temperature, pressure, alignment or solder-ball selection can damage a BGA chip or motherboard.
• This product is a repair tool set only; MacBook motherboard, CPU, GPU, ICs, solder balls and rework machine are not included unless specifically stated.
• If the product is found to be out of stock after ordering, the payment will be refunded.

FAQs

1. What is the DS-908 MacBook BGA Reballing Platform Tool Set?

The DS-908 MacBook BGA Reballing Platform Tool Set is a collection of BGA stencils and magnetic platforms designed for reballing various MacBook motherboard chips.

2. Which MacBook models can be repaired with this kit?

The kit covers selected boards including A1278, A1286, A1398, A1425, A1502, A1706, A1707, A1708, A1465, A1466 and A1534, depending on the specific chip stencil.

3. What chip types are supported?

The kit includes stencils for selected GPUs, CPUs, PCHs, SMCs, Type-C control chips, RAM/video memory and Touch Bar/fingerprint control chips.

4. What solder-ball sizes are supported?

The supplied stencils use different solder-ball sizes depending on the chip, with documented applications ranging from approximately 0.25mm to 0.5mm.

5. Is this suitable for beginners?

The DS-908 is intended for professional or experienced motherboard-repair technicians. BGA reballing requires appropriate heating equipment, alignment, soldering materials and practical repair experience.
